Motors are at the heart of countless machines and systems in various industries, from robotics to home appliances. Among the most commonly used are servo motors and DC motors. In this article, we'll explore the difference between servo motors and DC motors, highlighting their unique features and applications. By the end, you'll have a clear understanding of which motor is best suited for your specific needs.
A servo motor is a rotary or linear actuator that provides precise control over position, speed, and acceleration. It is commonly used for applications where accuracy and reliability are crucial. This type of motor is made up of several components: the motor itself (which can be either DC or AC), a feedback device (often an encoder), and a controller that manages the motor’s operation.
Servo motors are widely used across various industries, including:
Robotics: For precise control of robotic arms, legs, and other mechanical parts.
CNC Machines: Essential in automated manufacturing systems for accurate machining.
Aerospace: Used in flight control systems, antennas, and actuators.
Consumer Electronics: Found in camera autofocus systems and in toys that require precise movement.
Automotive: Used in steering systems, power windows, and even in electric vehicles for high-precision movements.
Servo motors operate using a closed-loop control system. The feedback device continuously monitors the motor’s position, speed, and acceleration. The system compares the actual values to the desired ones and sends an error signal to the motor. This signal triggers the controller to adjust the motor’s movements to correct any discrepancies, ensuring precise operation.
The control of servo motors is often managed through PWM (Pulse Width Modulation), a technique where the motor is given electrical pulses of varying width. These pulses define the speed and position of the motor by controlling the amount of time the motor is powered on during each cycle.
DC Servo Motors: These motors operate on direct current and are typically used for low-power applications. They are often found in smaller devices like robotic joints or camera autofocus systems. Their simple design makes them ideal for these tasks, providing reliable performance without the need for complex control systems.
AC Servo Motors: These are designed for higher power and are used in more demanding applications. AC servo motors are common in industrial machinery, where high speed and torque are required. These motors often feature complex control systems to maintain precision over long periods, even in harsh operating conditions.
A DC motor is an electrical machine that converts direct current (DC) into mechanical energy through rotational movement. It is widely used in applications where continuous motion is required. DC motors are simple, reliable, and can operate in a variety of settings, from household appliances to industrial equipment.
DC motors are commonly found in:
Household Appliances: They power devices like blenders, vacuum cleaners, and electric shavers.
Fans and Pumps: Used in cooling systems, blowers, and water pumps for HVAC systems.
Power Tools: Found in drills, grinders, and other power-driven tools.
Electric Vehicles: Used in scooters, electric bicycles, and other battery-powered transport systems.
Toys: DC motors drive small electric toys, such as cars and robots, for children.
The basic operation of a DC motor relies on the interaction of magnetic fields. It consists of two main parts:
Stator: The stationary part of the motor that creates a magnetic field.
Rotor (Armature): The rotating part, where the movement occurs.
When direct current flows through the rotor’s windings, a magnetic field is generated, interacting with the stator's magnetic field. This interaction produces a force that causes the rotor to spin, converting electrical energy into mechanical rotation.
As the rotor turns, the direction of the current through its windings is reversed by the commutator, maintaining continuous rotation. The commutator is essential for changing the current direction to keep the motor running smoothly.
Brushed DC Motors: These motors use brushes to supply current to the rotor’s windings. While they are simple to control, the brushes wear down over time, requiring regular maintenance.
Brushless DC Motors: These motors do not use brushes. Instead, they rely on an electronic controller to direct current to the rotor. This design makes brushless motors more efficient, longer-lasting, and requiring less maintenance compared to brushed versions.
The wire system used by servo motors and DC motors plays a key role in their operation.
Servo Motors: These motors use a 3-wire system—power, ground, and control. The control wire sends precise signals that dictate the motor’s movement, allowing for highly accurate position adjustments. This system is essential for applications that require precision, like robotics and CNC machines.
DC Motors: In contrast, DC motors typically operate with a simpler 2-wire system: power and ground. These motors rely on reversing polarity or adjusting voltage to change direction and speed, making them ideal for simpler, continuous motion tasks.
Servo Motors: These motors are typically designed to rotate within a limited range, usually 180°. They are controlled using PWM signals (Pulse Width Modulation), which adjust the motor’s position by varying the pulse width. This allows for highly accurate angular movement, suitable for tasks like adjusting robotic arms or camera focus.
DC Motors: Unlike servo motors, DC motors provide continuous rotation. They are controlled by varying the voltage supplied to the motor or reversing the polarity of the power source. This method allows for constant motion, making DC motors suitable for applications that require ongoing movement, such as fans, conveyors, and electric vehicles.
When comparing torque and speed, both motors serve different needs:
Servo Motors: Known for their high torque, servo motors can deliver up to 6000 RPM (Revolutions Per Minute) depending on the model. Their precision makes them ideal for applications requiring high torque at specific angles, but they may not be suitable for continuous high-speed tasks due to their limited rotation range.
DC Motors: These motors offer moderate torque and speed ranges. While they can run at high speeds, they tend to lose efficiency at higher speeds due to the lack of feedback systems. DC motors are more suitable for applications where continuous, less precise motion is required, such as in electric vehicles or industrial machines that don’t require high positioning accuracy.
Servo Motors: The control system for servo motors is more complex, involving feedback loops that allow for precise positioning and speed control. The feedback system ensures that the motor adjusts its position accurately based on real-time data, making it ideal for tasks requiring exact movements.
DC Motors: In comparison, DC motors use a much simpler control mechanism, relying on basic circuits to regulate speed and direction. While this makes DC motors easier to control, it also limits their ability to perform complex tasks that demand precision.
Servo Motors: Due to their advanced design and precision, servo motors tend to be more expensive than DC motors. The added cost is often justified by the need for accuracy and high performance in applications like robotics, CNC machines, and automation systems.
DC Motors: On the other hand, DC motors are more affordable and are a cost-effective choice for simpler applications. Their low cost makes them suitable for tasks like powering household appliances, tools, and basic machinery where precision is less critical.
Robotics: Servo motors are a cornerstone in robotics, where precise control is vital. They are used in robotic arms, legs, and other robotic systems, providing exact movements for tasks like assembly or surgery. The ability to control position and speed with great accuracy makes them indispensable in automation.
CNC Machines: These motors are crucial in CNC (Computer Numerical Control) machines. Servo motors allow for high-precision machining, controlling the movement of tools with fine-tuned adjustments. This ensures accuracy in cutting, drilling, and shaping parts, making them ideal for manufacturing and engineering.
Aerospace and Medical: Servo motors are used in flight control systems to adjust aircraft rudders, flaps, and other components for optimal performance. In the medical field, they power surgical robots for precise incisions and movements. They're also essential in medical imaging devices, helping adjust components with high precision.
Other Automated Systems: Servo motors are widely applied in various automated machinery systems. These systems require accuracy and smooth control, making servo motors the perfect solution. Examples include conveyor belts, automated packaging machines, and other systems where position control is crucial.
Household Appliances: DC motors are often used in everyday household appliances. Devices like blenders, fans, and vacuum cleaners rely on DC motors for efficient operation. Their ability to provide continuous rotation makes them ideal for these products, where variable speeds are important.
Electric Vehicles: DC motors are the heart of many electric vehicles. From electric scooters to bicycles, they provide the necessary power for movement. Their simple control systems make them suitable for these applications, where efficiency and performance are key.

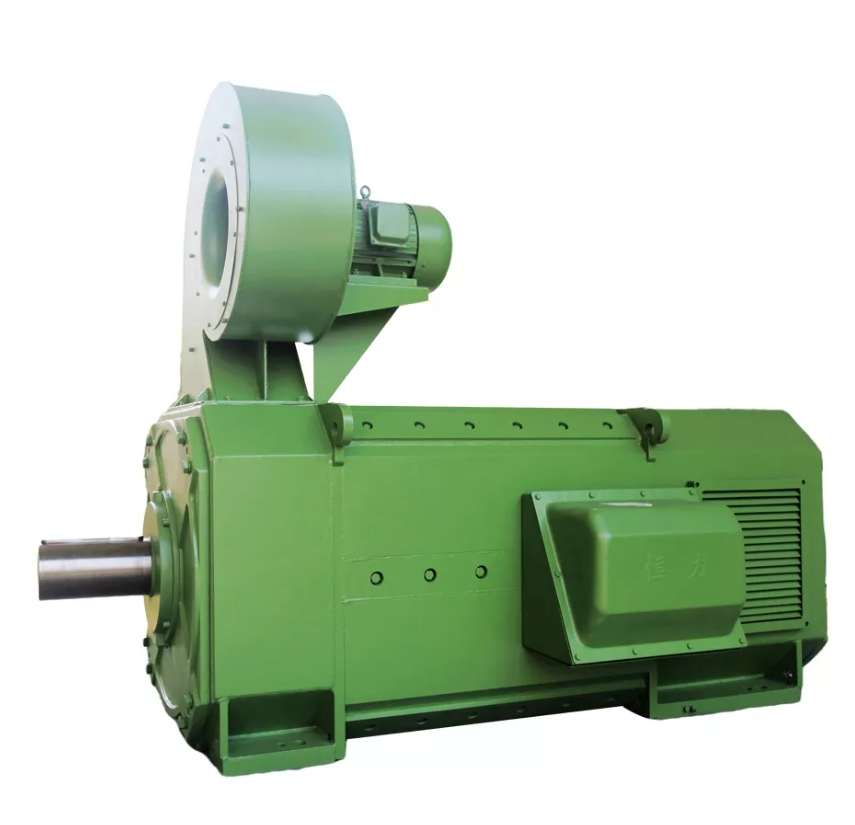

Industrial Equipment: DC motors are found in various industrial equipment like conveyors, mills, and lifts. These motors are well-suited for tasks requiring continuous rotation, such as moving materials along a production line. Their robust design ensures they can handle heavy loads while operating at consistent speeds.
High Precision and Control: Servo motors are renowned for their ability to deliver exact positioning. Whether it's controlling the angle of a robotic arm or adjusting the tilt of a camera, servo motors offer fine control over both position and speed. This makes them ideal for tasks that require high accuracy.
Reliable and Efficient: These motors are built for efficiency and reliability, especially in environments where precision is critical. With their feedback systems, they constantly adjust and correct their position, ensuring smooth operation even in challenging applications like robotics and automated machinery.
High-Temperature Operation: Servo motors can function effectively in high-temperature environments, making them suitable for demanding conditions such as those found in industrial machinery or aerospace applications. This ability allows them to perform reliably in a wide range of settings.
Critical Applications: Due to their precision and reliability, servo motors are often used in critical applications. They power essential systems in fields like robotics, aerospace, medical equipment, and automated manufacturing, where failure is not an option and precision is key.
Expensive: One major downside of servo motors is their cost. Servo motors are generally more expensive than DC motors due to their advanced technology, precise control systems, and higher performance. This can make them a less cost-effective option for simple or low-budget applications.
Requires Complex Control Systems: Servo motors require sophisticated control mechanisms, such as PWM signals and encoders. These components help manage the motor's precise movements but add to the complexity of the system. For basic applications, this added complexity may not be necessary.
Limited to Specific Movements: Unlike DC motors, which provide continuous rotation, servo motors are designed for specific movements. Their rotation is typically limited to around 180°, making them less suited for applications that require continuous rotation or unidirectional movement. This limitation makes them less flexible compared to other types of motors in some use cases.
Simple to Control and Implement: DC motors are easy to control, making them ideal for applications that don’t require high precision. The control circuit is straightforward, allowing users to reverse polarity or vary voltage to adjust speed or direction. This simplicity is one of the main reasons why DC motors are widely used in consumer products.
Lower Cost: One of the biggest advantages of DC motors is their affordability. Compared to other types of motors, such as servo motors, DC motors are available at a much lower cost. This makes them accessible for various applications, especially in budget-conscious projects or products.
Suitable for Continuous Operation: DC motors are designed for continuous rotation and can run for extended periods without significant wear. They are often used in devices like fans, pumps, and electric vehicles, where continuous operation is needed. Their simple design makes them reliable for these types of tasks.
Easy to Integrate with Simple Control Circuits: DC motors can be easily integrated into control systems. By simply reversing polarity or adjusting the voltage, you can control their speed and direction. This flexibility makes them useful in various systems, from toys to small machinery.
Lower Precision in Movement: While DC motors are excellent for continuous rotation, they do not offer the precision that servo motors can provide. They are not ideal for applications that require exact positioning, such as robotics or CNC machines, where high accuracy is crucial.
Less Efficient at High Speeds: DC motors may lose efficiency at higher speeds. Unlike motors with advanced feedback systems, such as servo motors, DC motors do not have the same level of control, which can lead to performance drops as speed increases.
Brush Wear in Brushed DC Motors: In brushed DC motors, the brushes that maintain electrical contact with the rotor tend to wear out over time. This wear results in maintenance issues and can eventually cause the motor to fail. Regular maintenance is needed to replace worn-out brushes and keep the motor functioning efficiently.
Applications Requiring Precise Position Control: Servo motors are ideal when you need exact positioning. Whether it’s adjusting a robotic arm or moving a CNC machine tool, the high precision of servo motors ensures that every movement is accurate. These motors excel at providing high torque and speed control, making them suitable for tasks that demand accuracy.
Robotics and Automated Systems: In robotics, servo motors are crucial. They allow for the precise control of robotic arms, legs, and other components. Similarly, they are commonly used in CNC machines, which need accurate movement to ensure proper cutting and shaping. These applications benefit from the servo motor's ability to control not only position but also the speed at which the motor moves.
Continuous Rotation and Moderate Precision: If you need continuous rotation, DC motors are a solid choice. They are well-suited for applications where high precision isn’t as critical, such as fans, pumps, or conveyors. DC motors are designed to provide steady motion without the need for complex feedback systems.
Low-Cost, High-Speed Applications: For high-speed and cost-sensitive applications, DC motors shine. They are commonly found in devices like household appliances (e.g., blenders, vacuum cleaners) and other small machinery. Their affordability makes them ideal for situations where you need simple, reliable motion without requiring the complex control of a servo motor.
Servo motors excel at precision, control, and specific movements, making them ideal for robotics and CNC machines. DC motors, on the other hand, are better suited for continuous motion, high-speed tasks, and applications where cost is a priority. Choosing the right motor depends on the needs of the application, balancing performance and cost.
A: Servo motors offer precise control over position, speed, and torque, making them ideal for robotics and CNC applications. DC motors are best for continuous rotation, high-speed tasks, and are more affordable, making them suitable for household appliances and simple machinery.
A: While DC motors can be used in robotics, they do not provide the same level of precision as servo motors. For tasks that require exact positioning, such as robotic arms or legs, servo motors are the better choice due to their feedback systems.
A: Servo motors are more complex and require advanced control systems, such as PWM and encoders. These components allow for precise control, which makes servo motors more expensive compared to the simpler design of DC motors.
