Common DC Motor Failures That You Should Know!

Common DC Motor Failures That You Should Know! DC motors are essential in countless industries, from robotics to household appliances. But even the most reliable motors can fail, causing costly downtime.

Understanding common DC motor failures is key to ensuring their long-term performance and efficiency.

In this post, we'll explore the most frequent motor failures, their causes, and practical solutions to keep your motor running smoothly.

What is a DC Motor and How Does it Work?

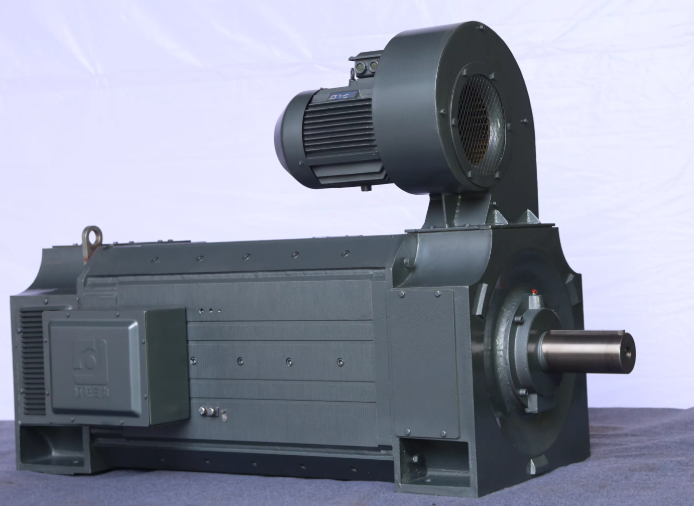

Overview of DC Motors

A DC motor (Direct Current motor) is a type of electric motor that uses direct current to generate mechanical motion. These motors are widely used in industries, electronics, and home appliances due to their simplicity and efficient operation.

DC motors come in various sizes and designs, but their basic principles remain the same. They convert electrical energy into rotational motion, making them ideal for applications requiring continuous movement or control.

Key Components of a DC Motor

DC motors consist of several key components that work together to convert electrical energy into motion:

• Stator: The stationary part of the motor that produces a magnetic field. It houses the field windings or permanent magnets, depending on the motor design.

• Rotor: Also known as the armature, the rotor is the rotating part of the motor. It is placed within the stator and turns when electrical current flows through it.

• Brushes: These are used to transfer current to the rotor's commutator. Brushes are typically made of carbon and are in constant contact with the rotating commutator.

• Commutator: A rotary switch that reverses the direction of current flowing through the rotor windings, ensuring continuous rotation in one direction.

Working Principle of a DC Motor

At the heart of a DC motor is the interaction between magnetic fields. When current passes through the armature's windings, it creates a magnetic field. This interacts with the stationary magnetic field produced by the stator. The resulting force causes the rotor to rotate.

The direction of the rotor's movement depends on Fleming’s Left-Hand Rule. It states that the direction of the force on a current-carrying conductor placed in a magnetic field is perpendicular to both the current and the magnetic field. The commutator ensures the current direction is reversed at the right time, allowing the rotor to turn continuously.

Common Applications of DC Motors

DC motors are used in a wide range of applications due to their ease of control and adaptability:

• Industrial Equipment: DC motors drive machinery like conveyor belts, pumps, and fans.

• Household Appliances: Fans, washing machines, and vacuum cleaners often rely on DC motors for their low-maintenance, reliable operation.

• Robotics: Used in small robots or automated systems requiring controlled motion.

• Electric Vehicles: In small applications like electric bicycles or scooters, DC motors offer an efficient drive system.

• Power Tools: Drills, saws, and other portable power tools often use DC motors for their compactness and simplicity.

By understanding how DC motors work and where they’re used, you can appreciate their importance in everyday devices and industrial processes.

Why Do DC Motors Fail?

Understanding the Causes of DC Motor Failures

DC motor failures can be caused by a variety of internal and external factors. Understanding these causes can help prevent costly repairs and minimize downtime. Below, we break down the major reasons why DC motors fail:

Internal Factors

• Overheating: One of the most common internal causes of motor failure. It happens when a motor operates at a higher temperature than it’s designed for. Overheating can damage components like the windings, causing them to short-circuit.

• Worn Brushes: Brushes are crucial for transferring electrical current to the rotor. Over time, they wear out due to constant friction, leading to poor performance or motor failure.

• Commutator Damage: The commutator is essential for reversing current flow in the rotor windings. Damage to the commutator, such as pitting or wear, can result in poor electrical contact and intermittent motor operation.

• Internal Short Circuits: If the motor windings or components short-circuit, the motor may fail completely. These internal failures are often caused by overheating, poor insulation, or contamination.

External Factors

• Improper Load: Using a motor that isn’t suited for the specific load can lead to failure. Overloading the motor or using it in inappropriate conditions can cause mechanical strain and premature wear.

• Environment: DC motors are vulnerable to environmental factors like moisture, dust, and corrosive materials. These can damage the motor’s internal components or cause them to rust, resulting in reduced performance or failure.

• Vibration: Excessive vibration from misaligned parts or external equipment can lead to motor damage. Over time, this can cause wear on bearings, shafts, and other critical parts.

The Importance of Selecting the Right Motor for Specific Applications

Choosing the correct DC motor for your application is critical to ensuring longevity and reliable performance. Using the wrong motor can cause it to run inefficiently or fail entirely. Factors such as motor size, speed, torque, and operating environment must be carefully considered.

• Torque and Speed Requirements: Choosing a motor with the wrong torque or speed ratings can lead to overheating or mechanical damage. Make sure the motor matches your specific needs.

• Environmental Conditions: If the motor is used in a harsh environment (e.g., wet, dusty, or high-temperature conditions), it’s essential to select one with proper protection like an appropriate IP rating.

• Duty Cycle: The frequency and duration of motor use also play a significant role in selecting the right motor. Motors designed for continuous use must be built to withstand high loads over extended periods.

By carefully evaluating these factors, you can significantly reduce the likelihood of motor failure and ensure your motor operates efficiently for years.

Common DC Motor Failures

1. Brush Wear and Damage

Brushes are essential components of DC motors, transferring electrical current to the rotor. Over time, however, they experience wear and tear due to constant friction.

• What Causes Brushes to Wear Out? Brushes wear out due to constant rubbing against the commutator. Factors such as the motor's operational speed, current load, and the material used in the brushes can affect their lifespan.

• How Brush Wear Affects Motor Performance As brushes wear, their ability to transfer current diminishes, causing uneven motor performance. This can result in poor efficiency, increased noise, and in extreme cases, motor failure.

• Signs of Brush Damage and When to Replace Them Common signs of worn brushes include reduced motor power, sparking at the commutator, and increased noise. If these signs appear, it's time to replace the brushes to avoid further damage.

• Solutions and Preventative Measures To prolong brush life, ensure proper motor alignment, use the right brush material, and keep the motor clean from debris and dust. Regular maintenance and timely replacement can help prevent issues.

2. Commutator Damage

The commutator is a vital part of DC motors, responsible for reversing the current flow in the rotor.

• The Role of the Commutator in DC Motors The commutator ensures continuous motor rotation by reversing the direction of current in the armature windings, keeping the rotor spinning.

• Types of Commutator Damage

• Pitting: Small craters or indentations that form on the commutator surface due to electrical arcing.

• Erosion: The gradual wearing away of the commutator material from excessive friction or overheating.

• Misalignment: When the commutator isn't properly aligned, it can cause uneven wear or damage to the brushes and other components.

• How Commutator Damage Impacts Motor Function Damaged commutators can lead to inefficient motor operation, increased wear on the brushes, and even electrical failures. It can also cause the motor to stall or operate erratically.

• Preventive Maintenance and Repair Techniques Regular inspection and cleaning of the commutator can help identify early signs of damage. If pitting or erosion is present, resurfacing or replacing the commutator may be necessary.

3. Overheating

Overheating is one of the most common and damaging issues in DC motors, affecting both motor performance and lifespan.

• How Overheating Occurs in DC Motors Overheating happens when a motor runs at higher temperatures than it’s designed for. This can occur due to overloading, insufficient ventilation, or prolonged use at high speeds.

• The Consequences of Running a DC Motor at High Temperatures Excess heat can damage the motor windings, insulation, and bearings. In severe cases, it can cause the motor to seize up or even burn out.

• Common Causes of Overheating

• Insufficient Cooling: Poor ventilation or cooling systems that fail to dissipate heat effectively.

• Overloading: Running a motor with a load that exceeds its rated capacity.

• High Ambient Temperatures: Operating the motor in an environment that’s too hot can strain its components.

• Solutions Proper ventilation, correct motor sizing, and thermal protection such as thermal overload relays can help prevent overheating.

4. Insulation Failure

Motor insulation plays a crucial role in protecting the windings and preventing electrical short circuits.

• How Insulation Breaks Down Over Time Over time, insulation materials degrade due to heat, moisture, and chemical exposure. This degradation can lead to short circuits or ground faults.

• Types of Insulation Failure

• Short Circuits: When the insulation between windings breaks down, causing wires to touch and shorting the circuit.

• Ground Faults: When the insulation fails, allowing electrical current to leak to the motor casing.

• How to Detect Insulation Failure Regular testing with insulation resistance meters can help detect weaknesses in the insulation before they cause significant damage.

• Prevention Select motors with appropriate insulation ratings for your operating conditions and conduct regular checks to ensure the insulation is intact.

5. Bearing Failure

Bearings are vital for smooth rotation and proper motor function, supporting the rotor and reducing friction.

• The Importance of Bearings in Motor Performance Bearings reduce the friction between moving parts, allowing the motor to operate smoothly and efficiently. Without them, the rotor would grind against the stator, causing excessive wear and motor failure.

• Common Causes of Bearing Failure

• Lubrication Issues: Lack of or degraded lubrication can lead to increased friction and wear.

• Dirt and Debris: Contaminants can enter the bearing, causing damage.

• Improper Installation: Misaligned bearings or improper installation can lead to early failure.

• Symptoms of Bearing Failure Noises such as grinding or squealing, excessive vibrations, or increased motor temperature are common signs of bearing problems.

• Solutions Regular maintenance, proper lubrication, and using high-quality bearings can prevent premature failure.

6. Motor Shaft Damage

The motor shaft connects the rotor to the motor casing and transmits rotational energy to the equipment it drives.

• How Shafts Get Damaged Motor shafts can become damaged due to misalignment, excessive load, or lack of maintenance. Over time, these issues can cause the shaft to bend or crack.

• Impact of Shaft Damage on Motor Performance A damaged shaft can lead to poor motor performance, including vibration, noise, and even total failure of the motor.

• Repair and Replacement Procedures Replacing a damaged shaft often requires disassembling the motor. In some cases, a simple realignment or lubrication may be enough to prevent further issues.

How to Prevent DC Motor Failures?

Routine Maintenance

Regular maintenance is crucial in preventing DC motor failures. By keeping up with routine checks, you can ensure the motor operates smoothly and lasts longer.

• Importance of Regular Inspections and Maintenance
  Routine inspections help detect issues early, before they develop into major problems. Regular maintenance increases motor life and reduces the chances of unexpected breakdowns.

• Cleaning, Lubrication, and Testing Procedures
  Regularly clean the motor to remove dust, debris, and contaminants that can affect performance. Ensure that the motor's moving parts are well-lubricated to minimize friction and wear.
  Testing motor performance, such as measuring current draw, voltage, and temperature, can identify inefficiencies and prevent failure.

• How to Check for Common DC Motor Problems Before They Escalate
  Look out for signs such as unusual noises, vibrations, or increased motor temperature. Early detection of these symptoms allows for timely intervention. Checking the brushes, commutator, and bearings during inspections can prevent more severe damage.

Proper Motor Selection

Selecting the right motor for your application plays a significant role in preventing failure. An improperly chosen motor can overheat, underperform, or fail prematurely.

• Choosing the Right Motor for Your Application
  Consider factors like load, operating environment, and duty cycle. A motor that can’t handle the load will be under stress, leading to overheating or excessive wear. Similarly, if the environment is harsh (moisture, dust, etc.), ensure the motor has proper protection.

• The Role of the Motor’s Specifications in Avoiding Premature Failure
  Motor specifications, such as voltage, speed, and torque, must match your requirements. A motor with a higher torque than needed may waste energy and overheat, while one with insufficient power could struggle, leading to failure.

Monitoring and Diagnostics

Using modern diagnostic tools can significantly improve motor reliability by detecting problems early.

• The Use of Sensors and Monitoring Tools to Detect Motor Problems Early
  Installing vibration, temperature, and current sensors can provide real-time data on motor health. Monitoring these parameters helps to identify deviations from normal operation before a major issue arises.

• How Vibration Analysis, Thermal Imaging, and Electrical Testing Help in Motor Maintenance
  Vibration analysis detects issues like misalignment or imbalance. Thermal imaging can identify overheating in parts such as bearings and windings, while electrical testing checks for electrical issues like short circuits or insulation breakdown.

Troubleshooting Common DC Motor Failures

Step-by-Step Troubleshooting Guide

Diagnosing DC motor issues requires a methodical approach. By following these steps, you can identify and fix common motor problems.

1. Check for Power Issues
   Ensure that the motor is receiving the correct voltage and that all connections are secure. Use a multimeter to verify voltage levels.

2. Inspect the Brushes and Commutator
   Worn or damaged brushes can lead to poor performance. Inspect them for wear or damage. If the brushes appear worn out, they should be replaced. Check the commutator for pitting or discoloration.

3. Look for Overheating Signs
   Overheating can result from overloading, poor ventilation, or prolonged use. Feel the motor casing; if it’s excessively hot, check if the motor is operating within its rated limits. Inspect the cooling system, if applicable.

4. Examine Bearings for Damage
   A noisy or vibrating motor could indicate bearing issues. Check for smooth rotation and listen for unusual sounds. If bearings are dry or damaged, they should be replaced immediately.

5. Test for Short Circuits or Ground Faults
   Use an insulation resistance tester to check for short circuits or ground faults in the windings. Low insulation resistance could indicate internal damage.

6. Monitor Motor Performance
   If the motor is underperforming, check the load it is driving. Ensure the motor isn’t overloaded, as this can cause it to run inefficiently and overheat.

Tools and Techniques for Diagnosing Motor Failures

Having the right tools is essential for troubleshooting DC motor failures effectively.

• Multimeter: Used to check voltage levels, resistance, and current flow. This is essential for detecting electrical issues like short circuits or ground faults.

• Insulation Resistance Tester: Helps detect breakdowns in insulation, preventing electrical failures.

• Vibration Analysis Tools: Used to identify mechanical issues such as misalignment, imbalance, or bearing wear by measuring motor vibrations.

• Thermal Camera: A useful tool for detecting overheating areas in the motor, which can be indicative of faulty windings or insufficient cooling.

• Lubrication and Cleaning Equipment: Regular maintenance tools like brushes, grease guns, and cleaning solvents ensure the motor operates smoothly.

When to Call in an Expert or Technician for Repairs

While DIY troubleshooting is useful for minor issues, certain situations require professional expertise.

• Complex Electrical Issues: If your troubleshooting reveals complex electrical problems, such as damaged windings or wiring issues, it’s time to call an expert.

• Motor Overhaul: If the motor requires a complete overhaul, including bearing replacement, commutator resurfacing, or extensive internal repairs, hiring a technician is the best choice.

• Frequent Failures: If you experience frequent failures despite following proper maintenance and troubleshooting steps, a technician can provide a more thorough analysis to prevent future issues.

The Role of Quality and Manufacturer Support in Preventing DC Motor Failures

Choosing Reliable DC Motor Manufacturers

When selecting a DC motor, the manufacturer’s reputation plays a crucial role in ensuring long-term reliability and performance. A reliable manufacturer provides motors that meet rigorous standards, ensuring better efficiency and reduced chances of failure.

• How Motor Quality Affects Performance and Longevity
  Quality motors are designed using superior materials, precise manufacturing processes, and stringent testing to ensure they perform well under various conditions. A motor built with high-quality components will not only last longer but also operate more efficiently. Low-quality motors, on the other hand, are prone to issues like overheating, brush wear, and bearing failure.

• The Importance of Warranties and Manufacturer Support for Repairs and Replacement Parts
  A manufacturer’s warranty is a valuable tool for protecting your investment. A strong warranty shows the manufacturer’s confidence in their product and offers peace of mind by ensuring support for repairs or part replacements when needed.
  Good manufacturer support goes beyond just offering warranties; it also includes providing easy access to spare parts, technical support, and repair services. This can save time and money in the long run, as well as prevent extended downtime for repairs.

By choosing a manufacturer known for their commitment to quality and customer support, you ensure that your DC motor is well-equipped to handle the demands of your application, reducing the risk of failure and costly repairs.

Conclusion

Common DC motor failures include brush wear, commutator damage, overheating, insulation failure, bearing issues, and shaft damage.
Preventive measures like routine maintenance, proper motor selection, and regular diagnostics can help avoid these problems.

Maintaining motor health through best practices will extend its lifespan and ensure smooth operation. Implementing these steps can prevent costly repairs and downtime.

FAQ

Q: What are the most common DC motor failures?

A: The most common DC motor failures include brush wear, commutator damage, overheating, insulation failure, bearing damage, and motor shaft issues. Regular maintenance can help detect these problems early and extend motor life.

Q: How can I prevent DC motor failures?

A: Preventing DC motor failures involves regular inspections, cleaning, and lubrication. Proper motor selection based on load, environment, and duty cycle is crucial. Using monitoring tools like vibration analysis and thermal imaging can help detect problems early.

Q: When should I call a technician for motor repairs?

A: If troubleshooting reveals complex electrical issues, such as damaged windings or extensive commutator damage, it’s best to consult a technician. For complete overhauls or persistent motor failures, professional repair services are recommended.
