Are DC Motors Better Than AC?

DC motors are not automatically better than AC motors, and AC motors are not automatically the safer or lower-cost answer. The better choice depends on the load, required speed range, starting and braking behavior, available power, control architecture, environment, maintenance capability, and the consequence of motion when power is removed. A Self Locking DC Motor can be a useful option when holding behavior, controllable low-speed torque, and forward/reverse operation are central to the machine task. This article compares the two approaches as industrial drive systems so that a buyer can choose on operating requirements rather than on a broad technology preference.

Key Takeaways

• DC and AC motors both convert electrical energy into rotary motion, but their supply and control approaches differ.

• A DC motor can be a strong fit where wide speed control, controllable torque, or frequent directional changes are required.

• An AC motor can be a strong fit for many fixed-speed or variable-frequency industrial duties, especially where brush maintenance is undesirable.

• “Self-locking” must be defined carefully: it may refer to a mechanical gearbox or holding function, not a universal property of every DC motor.

Are DC motors better than AC motors? The short answer

No motor type wins in every situation. The decision should begin with what the driven machine must do. If the application needs controlled low-speed motion, a broad speed range, high starting torque, rapid reversals, or a clearly defined holding function, a DC-based drive may deserve close evaluation. If the application runs continuously at a relatively stable speed, has an established AC supply, and prioritizes a low-maintenance motor structure, an AC motor with suitable controls may be the more practical route.

The comparison has changed as drives have evolved. Modern electronic controls allow many AC motor systems to provide effective speed control, while DC systems continue to be used where their characteristics and installed infrastructure fit the process. Therefore the question is not “which motor is best?” but “which motor, controller, gearing, brake or locking arrangement, and maintenance plan meet this application?”

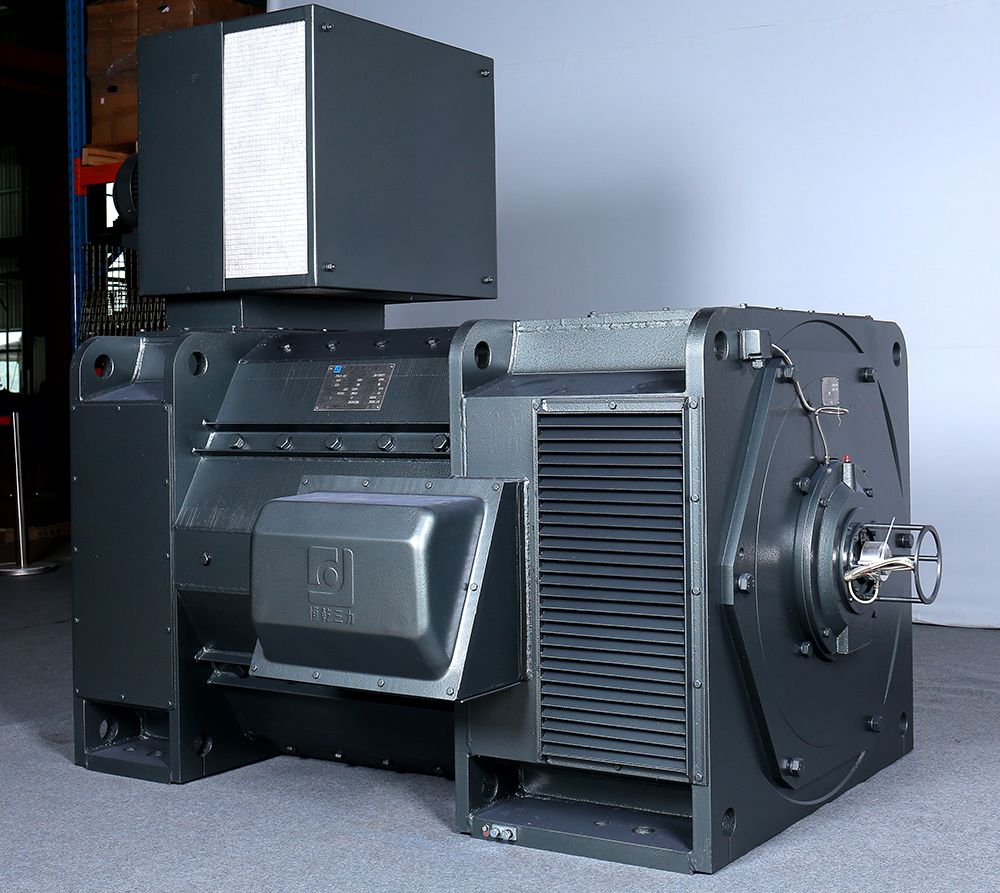

For example, a self-locking 10 kW bidirectional DC motor listed by Hengli includes stated voltage options and forward/reverse control. Whether it is appropriate still depends on holding-load direction, duty, environment, speed requirement, and the surrounding machine safety design.

AC vs DC motors: compare the system, not just the motor

The table shows why simple claims are risky. An AC motor may operate with a variable-frequency drive and provide the speed control required by a process. A brushed DC motor may deliver useful torque behavior but need routine brush and commutator care. Either type may need a brake, gearbox, or other restraint if the load must not move when power is removed. The motor alone does not determine the behavior of the installed system.

When a DC motor is the practical choice

A DC motor can be a practical choice where the application has a strong need for controllable torque and speed. Typical questions include whether the machine must start under load, creep accurately, reverse often, or follow a changing process speed. These demands occur in certain rolling, mixing, conveying, lifting, material-handling, and process-machine duties. The right motor and controller must be rated for the actual cycle, not merely the average output.

In a brushed DC design, armature current and magnetic flux are closely tied to developed torque. A conceptual relationship is T = k x Phi x Ia. The controller, field system, and motor construction then determine how that principle is applied within safe current, temperature, and commutation limits. A change in load can change armature current and heating, so the required acceleration, overload duration, and number of starts are essential selection inputs.

DC motor speed is often understood through a simplified expression: speed is approximately proportional to (armature voltage - armature current x armature resistance) divided by magnetic flux. This plain-text formula describes a trend, not a commissioning setting. It helps explain why armature voltage, field control, current limit, load, and cooling should be considered together.

Hengli lists self-locking DC motor for rolling mill products within its DC motor range. Before choosing a product for a mill-related duty, define the required torque at the roll or driven mechanism, maximum and minimum speed, reduction ratio, reversals, speed ramps, load disturbances, and the precise meaning of “self-locking” for the mechanism.

When an AC motor is the practical choice

An AC motor can be an appropriate industrial choice when the load is well suited to its speed and control arrangement. Common situations include pumps, fans, compressors, conveyors, and general machinery where an AC supply is readily available and the process does not require the particular characteristics of a brushed DC drive. With the right variable-frequency drive, many AC systems can provide adjustable speed and controlled ramping.

The value of an AC approach often lies in the broader system context. Widely available motor types, familiar maintenance practices, no brush commutator in a typical induction design, and established variable-frequency control can make it attractive. But an AC selection still requires engineering checks for starting torque, low-speed cooling, braking, load inertia, harmonic considerations, gearbox behavior, and protection against the environment.

For an application that must hold a suspended or backdrivable load, an AC motor is not made self-locking simply because it is an AC machine. A brake, worm gear with appropriate conditions, mechanical restraint, or designed control function may be needed. The same is true for DC systems. Motion safety should be designed around failure modes, not inferred from the motor name.

What “self-locking” should mean in a motor specification

Self-locking is often used loosely, which can create a serious specification gap. In many mechanical systems, a self-locking effect comes from the gearbox or transmission geometry, not from the electric motor itself. In other cases, the requirement is actually for a holding brake, an electromagnetic brake, a fail-safe spring-applied brake, a position-holding control strategy, or resistance to backdriving. These are different technical requirements and should not be used interchangeably.

Before selecting a self-locking motor, define the load condition during power loss. Is the load vertical, inclined, or horizontal? Can gravity, process tension, stored energy, or external force backdrive the mechanism? Must the load remain at position indefinitely or only resist a short transient? Is the holding function safety-related? The answers determine whether a mechanical brake, transmission feature, load restraint, or safety-rated architecture is required.

The self-locking bidirectional DC motor should therefore be reviewed as part of a complete drive assembly. Confirm the actual locking mechanism, permitted holding torque, duty while holding, backdrive behavior, release method, controller logic, and any required safety device. Do not rely on a product descriptor alone where personnel or equipment protection is involved.

Speed control, torque, and overload: use the duty cycle

Motor speed control should be evaluated at the working shaft, not only at the motor. A gearbox changes speed and torque. A load with high inertia may require substantial acceleration torque even if its steady running torque is modest. A process can also impose peak torque at breakaway, during material engagement, or during reversing. The controller must handle those demands, and the motor must dissipate the related heat over the entire duty cycle.

Overload protection is an important part of this assessment. A current limit may protect the converter or motor from a severe event, but it can also prevent the machine from delivering the required acceleration torque. Thermal protection may respond more slowly than a mechanical jam. A suitable design defines the protection function, its setting, its response, and the recovery method. It also considers whether a nuisance trip would create a different process or safety hazard.

Ask suppliers to review a torque-speed-duty chart rather than a single power value whenever the application has variable load. The chart should show steady running points, starting point, acceleration segments, reversals, dwell periods, and expected overload duration. This gives the technical team a more realistic basis for comparing a high torque motor with an AC alternative.

Maintenance, environment, and total operating cost

Maintenance requirements affect the choice over the life of a drive. Brushed DC motors need brush and commutator inspection. The work should include brush wear, spring condition, holder movement, commutator surface, dust, vibration, ventilation, and connection integrity. A good maintenance program does not merely replace brushes on a schedule; it records trends and investigates changes in sparking, temperature, or wear.

Many AC motor designs avoid that brush-commutator interface, but they still need bearing care, cooling inspection, insulation testing where appropriate, and drive-system maintenance. A variable-frequency drive introduces electronics that require a clean enclosure, suitable ambient conditions, grounding and cable practices, and correct parameter management. Neither option is maintenance-free in an industrial environment.

Environmental protection requires the same discipline. Dust, water, oil mist, chemical exposure, heat, and restricted airflow can change the appropriate enclosure and cooling choice. Higher protection may be useful in an exposed location, but it must be compatible with heat removal. Cable entries, shaft seals, drainage, mounting orientation, and service access all deserve review. A motor that is technically suitable in a catalogue may not remain suitable after it is enclosed in a hot, dirty, poorly ventilated machine space.

A decision framework for industrial buyers

Start the decision by creating a concise application data sheet. Include the driven equipment, required shaft torque, speed range, starting method, inertia, acceleration time, reversals, stopping method, expected overload, duty cycle, supply voltage, controller preference, ambient conditions, mounting, space constraints, maintenance access, and holding or braking requirement. This removes ambiguity before price comparison begins.

Next, identify the non-negotiable requirement. If the load must remain fixed during loss of power, specify the holding function and its failure behavior. If the process must reverse under load, specify the reversal time and number of cycles. If low-speed torque is important, state the speed range and cooling constraints. If process continuity matters, define the maintenance window and spare-parts strategy. A solution that costs less initially may not be the best system if it does not meet those conditions.

Hengli can review a request more effectively when it includes these facts and the relevant product context. The goal is not to declare DC or AC universally better; it is to make the industrial drive system perform predictably for the actual machine.

Conclusion

DC motors are better than AC motors only when their combination of torque behavior, speed control, reversing capability, holding arrangement, and service requirements fits the job better. AC motors are better when their supply, control, maintenance profile, and process performance make them the stronger system choice. For a Self Locking DC Motor, the most important step is to define the locking or holding function precisely and assess the entire drive train, including gearbox, brake, controller, and failure mode. A sound selection starts with the process duty and ends with a verified system configuration, not a generic technology verdict.

FAQs

Are DC motors more powerful than AC motors?

Not inherently. Power capability depends on the individual motor design, rating, cooling, duty, controller, and installation. Compare the required torque-speed-duty points rather than the motor category alone.

Can an AC motor provide variable speed?

Yes. An AC motor can provide adjustable speed when used with an appropriate control system, often a variable-frequency drive. The usable range and performance depend on the motor, drive, load, and cooling conditions.

Does a self-locking DC motor always hold a load when power is off?

No. “Self-locking” must be defined and verified. The holding effect may depend on a gearbox, brake, mechanical restraint, or control function, each with different limits and failure behavior.

Is a brushed DC motor difficult to maintain?

It requires routine attention to brushes and the commutator, but the work is manageable when access, procedures, and condition records are planned. The appropriate maintenance level depends on the application.

Which motor is better for frequent reversing?

Either type can be suitable when the motor, controller, transmission, and duty are designed for the reversal cycle. Define reversal torque, time, frequency, inertia, and stopping method before choosing.

What data is needed to request a self-locking drive?

Provide load direction, holding torque, backdrive risk, safety requirement, speed, torque, duty cycle, supply, environment, mounting, gearbox details, brake requirement, and the required behavior during power loss.
