Why switching to AC drives for plastic extrusion makes sense

Historically, plastic extrusion relied heavily on DC motors. Operators needed their excellent low-speed torque control. This control helped manage thick, viscous polymer melts. However, legacy DC systems now create a severe operational burden. They suffer from high maintenance demands. Parts obsolescence plagues older units constantly. They also exhibit glaring energy inefficiency. Fortunately, AC variable frequency drive (VFD) technology has fully matured. Modern AC systems easily match legacy DC torque performance. In many cases, they exceed those older capabilities. Upgrading fundamentally shifts your operational expenditure equation. You save money every single running hour. This article provides a realistic, evidence-based framework. We help you evaluate a DC-to-AC retrofit on your extrusion lines. We balance upfront capital requirements against long-term reliability. You will learn exactly how upgrading impacts energy use. We also cover maintenance schedules and overall product quality improvements.

Key Takeaways

• Performance parity: Advanced vector control allows modern AC drives to deliver the precise, low-speed constant torque required for plastic extrusion, eliminating the historical advantage of DC motors.

• Maintenance elimination: Upgrading removes the need for brush inspections, commutator machining, and filter changes associated with DC motors, recovering hundreds of hours of planned downtime.

• Measurable ROI: Energy savings and reduced maintenance typically yield a payback period of 12 to 24 months, depending on local energy costs and machine operating hours.

• Implementation reality: A successful retrofit requires careful footprint planning, gearbox compatibility checks, and precise motor sizing—it is not a simple plug-and-play swap.

The Business Case: The Hidden Costs of Legacy DC Systems

Aging DC systems steadily erode profit margins. This happens daily in continuous plastic manufacturing. You face hidden costs every hour the extruder runs. The maintenance burden remains entirely unavoidable. DC motors require frequent carbon brush replacements. Commutators degrade rapidly over time. They eventually need expensive, time-consuming resurfacing. Maintenance teams must regularly clean accumulated carbon dust. This dust poses severe contamination risks.

Clean plant environments cannot tolerate airborne carbon particulate. Carbon dust creates a highly conductive film over time. This film easily infiltrates nearby electrical control panels. It eventually shorts out expensive printed circuit boards. Plant managers often ignore this secondary contamination cost. Additionally, storing spare DC armatures consumes valuable warehouse space. These heavy spares degrade if stored in humid environments. Your maintenance budget constantly bleeds capital just to maintain the status quo.

Beyond maintenance, obsolescence threatens your production schedules. Sourcing replacement DC drives becomes increasingly difficult. Lead times for new motor armatures often stretch into months. This scarcity directly leads to prolonged downtime risks. Few technicians still possess the specialized skills to rewind DC armatures. Older DC setups also suffer from severe energy inefficiency. They lose significant power during partial-load operations. High-efficiency AC alternatives drastically outperform them electrically. Upgrading resolves these margin-draining inefficiencies instantly.

Here are common hidden costs plaguing legacy installations:

• Routine carbon brush purchases and inventory management.

• Specialized outsourced labor required for commutator turning.

• Lost production hours during scheduled cooling filter replacements.

• Higher ambient heat generation requiring extra plant cooling capacity.

Torque and Precision: Can an AC Motor for Plastic Extrusion Compete?

Let us address the primary engineering skepticism directly. Operators often worry about maintaining constant torque. They need this stability at near-zero speeds. They fear an AC motor might stall easily. They also worry about dangerous speed fluctuations during cold startups. Historically, this was a highly valid concern. Today, drive technology has advanced far beyond those old limitations.

Modern AC VFDs utilize closed-loop vector control. They use precision encoder feedback mounted on the motor shaft. This encoder monitors the exact rotor position continuously. Many modern drives also employ Direct Torque Control (DTC). DTC algorithms manage rotational force instantly. They calculate the optimal magnetic flux thousands of times per second. These advanced algorithms precisely manage torque delivery. They perfectly match legacy DC capabilities across the entire speed range.

Drive precision directly impacts your actual business outcomes. Consistent screw speed translates directly into consistent melt pressure. Stable pressure reduces material waste dramatically. It ensures absolute product uniformity across the entire production batch. Using a modern AC Motor for Plastic extrusion guarantees top-tier melt quality. You achieve significantly tighter tolerances on your final extruded profile.

Many extrusion lines utilize downstream gear pumps. These mechanical pumps require an extremely stable inlet pressure. If the main extruder motor speed fluctuates, inlet pressure drops. The gear pump then starves for melted material. This starvation causes severe product dimensional variations. Consistent AC motor torque eliminates this cascading failure mode. You prevent die swell inconsistencies completely. You also avoid costly melt fracture defects.

Quantifying the ROI: Energy and Uptime

Building a CapEx justification requires a clear evaluation framework. You must measure tangible savings against the initial investment. Focus strictly on measurable operational improvements. Ignore vanity metrics and focus on bottom-line impact.

First, estimate standard energy consumption reductions. Upgrading typically yields a 3-5% baseline motor efficiency improvement. You also gain significant drive-level electrical savings. Calculate these savings by comparing kW ratings. Multiply the difference by your annual running hours. Multiply that total by your local electricity rate.

Consider a standard 200kW extruder motor. It typically runs 8,000 hours annually in continuous operations. A conservative five percent efficiency gain yields massive savings. You save roughly 80,000 kilowatt-hours every single year. Multiply this by your industrial power rate. The financial return becomes undeniable quickly. Furthermore, energy costs will likely rise over the next decade. Locking in efficiency now protects future profit margins.

Next, factor in maintenance cost recovery. Eliminate the labor hours spent on quarterly brush checks. Remove the materials cost of annual motor rebuilds. Stop buying specialized DC drive fuses. These savings add up quickly over a single fiscal year.

Finally, assign a strict financial value to uptime. Modern AC systems offer a vastly higher Mean Time Between Failures (MTBF). This reliability directly increases your active production capacity. Avoided unplanned downtime often represents the largest financial win.

Table 1: Potential Annual Savings Dimensions

Implementation Realities: Navigating the DC-to-AC Retrofit

Swapping drive systems presents physical and electrical challenges. You must mitigate these risks through careful upfront planning. Upgrading is never a simple plug-and-play operation. It requires thorough mechanical engineering oversight.

First, consider the footprint and form factor. AC motors can feature larger frame sizes than DC equivalents. They might produce the exact same power rating. However, they often require more physical space. You will likely need to adapt existing motor mounts. Fabricators often build custom steel transition bases to accommodate the new frame.

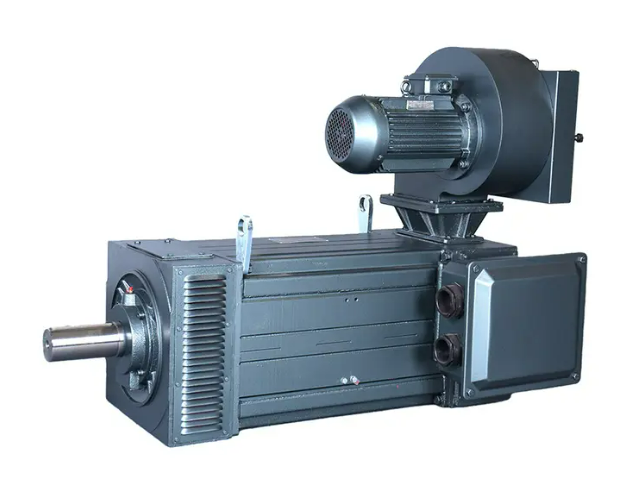

Second, address strict cooling requirements. AC motors running at low speeds require continuous forced ventilation. Standard internal shaft-driven fans cannot move enough air. They spin too slowly at low extruder RPMs. You must install external blower fans. Separate cooling circuits prevent dangerous overheating. They protect the delicate windings during high-torque extrusion.

Third, verify gearbox and coupling compatibility. The new motor must align perfectly. It connects directly to the existing extruder gearbox input shaft. You may need custom spacer plates for proper height alignment. Frequently, operators must replace old couplings entirely. The new AC motor likely features a different shaft diameter.

Precision alignment prevents premature bearing failures. Technicians should always use laser alignment tools during installation. They must align the motor shaft and gearbox perfectly. Even a millimeter of misalignment causes severe destructive vibration. You should perform baseline vibration analysis immediately after commissioning. This data provides a crucial benchmark for future predictive maintenance.

Follow this critical implementation checklist:

1. Measure the available physical space around the extruder base carefully.

2. Verify the new AC motor frame dimensions against existing steel mounts.

3. Design a dedicated power wiring path for the forced cooling blower.

4. Check the gearbox input shaft diameter and exact keyway dimensions.

5. Source a compatible mechanical coupling weeks before the shutdown begins.

Shortlisting Logic: Selecting the Right AC Drive and Motor Vendor

Choosing the correct equipment ensures long-term extrusion success. You must evaluate both drive capabilities and motor durability. Do not just buy the cheapest components available.

When reviewing VFDs, look for dedicated extruder macro programs. These built-in software profiles simplify initial setup. You also need high overload capacity. The drive must handle cold polymer starts safely. Look for 150% overload ratings for at least sixty seconds. Harmonic mitigation features remain crucial. They protect your plant's power grid from electrical noise.

Modern VFDs induce high-frequency voltage pulses. These pulses can create destructive shaft bearing currents. Therefore, you must specify shaft grounding rings on the new motor. These rings safely channel stray currents away from the bearings. They prevent premature fluting and bearing failure. Also, consider the specific cooling fan design. Separately powered blowers ensure cooling remains independent of shaft speed. This feature is non-negotiable for low-speed extrusion.

Motor ingress protection remains absolutely critical for longevity. You must specify IP55 or higher enclosure ratings. This protects the internal stator windings from fine plastic dust. It also blocks stray resin pellets and environmental contaminants. A totally enclosed fan-cooled (TEFC) design works best in these harsh environments.

Finally, evaluate integrators based on proven vendor ecosystem support. Choose partners possessing deep experience in specific extrusion retrofits. Verify they have local availability of essential spare parts. A trustworthy vendor will gladly conduct an upfront energy audit. This audit validates your projected savings. It gives management confidence before they commit capital.

Conclusion

Switching to AC drives demands initial capital expenditure. It requires formal budget approval from plant management. However, modern plastic extrusion operational realities demand this change. It stands as an inevitable and highly profitable upgrade. AC technology delivers superior low-speed torque. It eliminates costly routine maintenance entirely. It also saves substantial electrical energy annually.

Your next step remains clear and actionable. Request a comprehensive site audit from a qualified systems integrator. Ask them to measure your current DC baseline energy usage. Let them map out a localized ROI projection. They should base this projection on your actual plant data. Take decisive action today. Upgrade your extrusion lines to secure higher yields.

FAQ

Q: Does replacing a DC motor with an AC motor require a new gearbox for my extruder?

A: Not necessarily. If properly sized, the AC motor can be matched to the existing gearbox ratio. However, custom mounting plates or new couplings are often required due to different frame dimensions.

Q: How long does a typical DC to AC extruder conversion take?

A: Mechanical and electrical installation typically takes 2 to 4 days per line, depending on panel wiring complexities and mounting adaptations. It is usually scheduled during planned plant shutdowns.

Q: Will an AC drive save energy if my extruder always runs at full speed?

A: Yes, though the savings are lower than in variable-speed applications. An AC induction motor or permanent magnet AC motor inherently operates at a higher electrical efficiency than a DC motor, reducing overall kW draw even at base speed.

Q: Can an AC drive handle the high starting torque needed for a cold extruder full of plastic?

A: Yes, provided the system is sized correctly. Heavy-duty rated AC drives can deliver 150% to 200% starting torque. Proper barrel heating protocols should always be followed before startup to prevent screw shear, regardless of motor type.
