Views: 0 Author: Site Editor Publish Time: 2026-09-20 Origin: Site
Yes, AC motors can operate at variable speeds. Doing so safely requires specific hardware. You typically pair a Variable Frequency Drive (VFD) with a properly rated motor. Standard AC induction motors run continuously at fixed speeds. They rely entirely on incoming grid frequency. Modifying their speed without the right framework leads to thermal failure. Process inefficiency and premature wear quickly follow.
You must understand the underlying engineering to avoid catastrophic equipment failure. Standard motors simply cannot dissipate heat when forced to run slowly. We see many facilities damage good equipment by ignoring these electrical realities. This article provides a transparent, engineering-focused breakdown. We will guide you through evaluating, specifying, and implementing a Variable Speed AC Motor system. You will learn how to navigate common electrical traps. We also cover mechanical considerations and crucial mitigation strategies. By the end, you will know exactly how to ensure reliable performance across your facility.
AC motor speed is dictated by supply frequency; achieving reliable variable speed requires changing this frequency via a VFD, not by simply dropping voltage.
Upgrading to a variable speed AC motor system significantly reduces energy consumption, particularly in variable torque applications like centrifugal pumps and fans (governed by the Affinity Laws).
Not all AC motors can handle variable speeds; purpose-built "inverter-duty" motors are critical for managing the thermal and electrical stresses introduced by VFDs.
Successful implementation requires proactive mitigation of system risks, including low-speed overheating, harmonic distortion, and bearing fluting from common-mode voltage.
Standard AC motor speed locks rigidly to the power supply frequency. In the United States, this grid frequency is 60Hz. In many other parts of the world, it is 50Hz. The motor's internal construction also dictates its base speed. The number of magnetic stator poles determines how fast the magnetic field rotates. You cannot easily change the physical poles once the motor leaves the factory. Therefore, standard motors run at one predetermined speed. If you plug them directly into the wall, they will spin at that fixed rate until you turn them off.
You need an intermediary device to change the motor speed effectively. A Variable Frequency Drive (VFD) serves this exact purpose. The drive first takes the incoming alternating current (AC) and rectifies it into direct current (DC). It stores this DC power in an internal bus. Next, the VFD inverts the DC power back into a synthetic AC waveform. It uses Pulse Width Modulation (PWM) to create this waveform. This process allows the drive to precisely control both the frequency and the voltage sent to the motor. Maintaining the correct volts-per-hertz (V/Hz) ratio keeps the motor's magnetic flux optimal at any speed.
Many people mistakenly treat AC motors like light bulbs. They attempt to control motor speed using a basic voltage regulator or dimmer switch. This approach constitutes a dangerous technical trap. Dropping the voltage without altering the frequency starves the motor of torque. The motor then struggles to turn the load. This struggle drastically increases internal "slip" between the rotor and stator. Increased slip generates massive amounts of wasted heat energy. The excess heat quickly melts the internal insulation. Ultimately, this misguided method destroys the motor entirely.

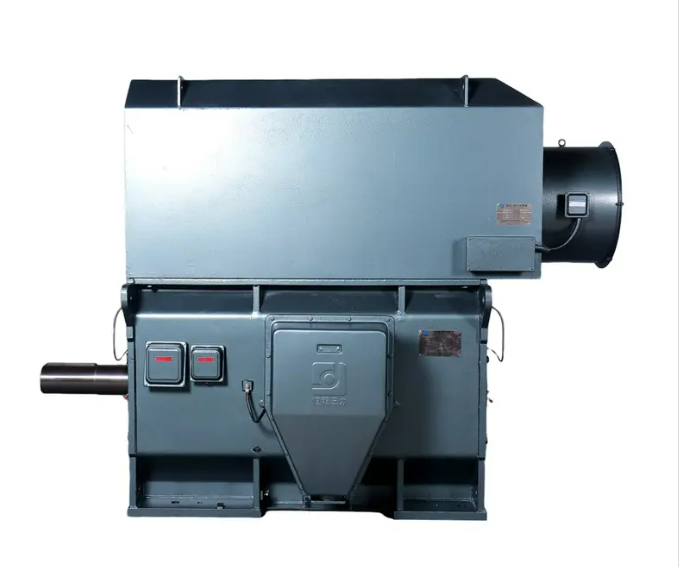

Operating a Variable Speed AC Motor delivers profound energy savings. This is especially true in fluid dynamics applications. Fans and centrifugal pumps follow the Affinity Laws. These physical laws dictate a non-linear relationship between motor speed and energy consumption. A small reduction in speed yields a massive reduction in power required. When you drop the motor speed by just 20%, you cut energy consumption by nearly 50%. You no longer need mechanical dampers or throttling valves to restrict flow. You simply slow down the motor to match the exact process demand.
Affinity Laws Energy Savings Chart
Motor Speed (%) | Fluid Flow (%) | Required Power (%) |
|---|---|---|
100% | 100% | 100% |
90% | 90% | 73% |
80% | 80% | 51% |
70% | 70% | 34% |
60% | 60% | 22% |
Fixed-speed systems suffer significant mechanical stress during startup. Across-the-line starting slams full voltage into the motor instantly. This creates a massive inrush current up to six times the normal running current. It also delivers a violent mechanical shock to belts, gears, and couplings. A variable speed setup eliminates these harsh starts. The VFD acts as a soft starter. It ramps the speed up gently over several seconds. This smooth acceleration drastically reduces mechanical wear. Belts snap less often. Gearboxes last much longer. Overall system reliability improves noticeably.
You must define your application's load profile before purchasing equipment. Applications fall into two main categories. Conveyors, hoists, and extruders represent constant torque loads. These machines demand heavy turning force even at very low speeds. Fans and centrifugal pumps represent variable torque loads. They need very little torque at low speeds. Constant torque applications require aggressive thermal management. The motor generates substantial heat while running slowly. Variable torque applications forgive low speeds more easily because they generate less heat.
The turn-down ratio establishes the motor's required speed range. It tells you how slowly the motor must run while fully loaded. A 10:1 turn-down ratio means a 1750 RPM motor can run down to 175 RPM safely. Evaluating this ratio determines your cooling needs. If the motor rarely drops below 50% speed, standard cooling methods usually suffice. If your process requires running at 10% speed continuously, standard cooling will fail. You will need external, independently powered blowers to keep the motor housing cool.
You cannot pair a standard general-purpose motor with a VFD and expect longevity. You need a purpose-built inverter-duty motor. The synthetic PWM waveform from a VFD creates high-frequency voltage spikes. These rapid spikes cause corona discharge within the motor windings. Corona discharge eats away standard wire insulation in a matter of weeks. Inverter-duty motors solve this problem structurally. They utilize upgraded insulation systems. They feature heavy-duty Class F or Class H insulation ratings. They also use specialized wire coatings designed specifically to withstand relentless voltage spikes.
Insulation Comparison Summary
Feature | General Purpose Motor | Inverter-Duty Motor |
|---|---|---|
Insulation Class | Class B or F (Standard) | Class F or H (Upgraded) |
Voltage Spike Tolerance | Low (Fails quickly on PWM) | High (Withstands VFD spikes) |
Low-Speed Thermal Rating | Poor (Overheats below 50% speed) | Excellent (Rated for wide turn-down) |
Magnet Wire Type | Standard Enamel | Spike-Resistant "Inverter Grade" |
The physical enclosure heavily influences low-speed survival. Most standard motors are Totally Enclosed Fan Cooled (TEFC). TEFC motors have a cooling fan attached directly to the main rotor shaft. When the motor slows down, the fan slows down too. It stops moving enough air just when the motor needs cooling most. Totally Enclosed Non-Ventilated (TENV) enclosures avoid this issue by dissipating heat purely through their heavy cast-iron frames. Totally Enclosed Blower Cooled (TEBC) enclosures offer the ultimate solution. They feature a separate fan motor that runs at full speed constantly, regardless of the main motor's RPM.
Overheating remains the most common cause of premature failure in variable speed setups. Standard shaft-mounted fans lose their efficacy rapidly as RPM drops. A fan spinning at half speed moves significantly less than half the air volume. Heat builds up deep inside the stator windings. You must mitigate this thermal risk proactively. Always verify the motor's certified turn-down ratio on its nameplate. If you must run below that limit, upgrade to a TEBC enclosure immediately. Ignoring thermal limits guarantees a costly stator rewind.
VFDs induce unwanted high-frequency voltages along the motor shaft. This phenomenon creates common-mode voltage. The voltage travels down the shaft looking for a path to ground. It typically jumps across the thin oil film inside the motor bearings. Each jump creates a microscopic electrical arc. Over time, millions of these tiny arcs blast pits into the bearing races. We call this destructive pattern "bearing fluting." You can prevent it easily. Install shaft grounding rings to give the voltage a safe path to the frame. For larger motors, use electrically insulated bearings on the non-drive end.
The distance between your VFD and your motor matters immensely. Long cable runs create a dangerous effect called the reflected wave phenomenon. The high-frequency pulses from the drive travel down the wire. When they hit the motor terminals, they bounce back. These returning waves collide with incoming waves. They stack on top of each other, doubling the peak voltage instantly. This extreme voltage destroys terminal insulation. You must keep cable runs short. If you cannot avoid a long run, install a load reactor or a dV/dt filter at the drive output.
VFDs represent non-linear electrical loads. They pull current from the power grid in harsh, choppy pulses rather than smooth waves. These pulses introduce harmonic distortion into your facility's electrical system. High harmonic distortion causes transformers to overheat. It also causes sensitive electronics and control PLCs to behave erratically. You should specify drives with built-in DC chokes to smooth out the power draw. For larger installations, you must add external active harmonic filters. This ensures your facility maintains compliance with the IEEE 519 power quality standard.
Before purchasing new equipment, you must evaluate what you already own. Retrofitting an older system requires careful inspection.
Check every existing motor nameplate for an "Inverter Duty" or "VFD Rated" stamp.
Measure the existing cable distance between the motor control center and the equipment.
Assess the ambient temperature and dust levels in the operating environment.
If current motors lack inverter ratings, do not just install a VFD. You will need a complete motor-drive package replacement to ensure safety.
You need clear metrics to prove your project's value. Document your baseline energy consumption before making any changes. Establish the precise speed ranges your process actually requires. Do not guess the required RPM; measure the fluid flow or conveyor speed manually. Record all environmental constraints. If the area requires washdowns, you need specific NEMA washdown ratings. If the ambient temperature exceeds 40 degrees Celsius, note this clearly. Proper documentation prevents under-sizing the equipment.
Do not simply buy the cheapest drive and the cheapest motor separately. Evaluate manufacturers based on system synergy. Look for vendors who offer matched motor-drive pairings. Buying both components from one brand often unlocks extended warranty coverage. Verify their warranty explicitly covers inverter-fed operation. Ask about their localized technical support. System integration always involves unforeseen communication glitches. You want a vendor who can dispatch a field engineer quickly when your setup refuses to communicate with the main PLC.
Gather your load profiles and existing motor nameplate data. Take clear photos of the equipment tags. Reach out to a qualified application engineer. Share your documented baseline metrics and operating environment constraints. Ask them to calculate the projected energy savings based on your specific variable torque loads. Do not proceed with procurement until they provide a detailed thermal and harmonic mitigation plan.
AC motors can absolutely operate at variable speeds successfully. However, this transition is never a simple plug-and-play scenario. It requires viewing the motor, the drive, and the cabling as one integrated, engineered system. You cannot cut corners on insulation or cooling. Prioritizing upfront specification prevents catastrophic failures later. Choose genuine inverter-duty motors. Actively address bearing currents and cable length risks during the design phase. Following these disciplined engineering practices ensures your equipment survives. More importantly, it guarantees your projected energy ROI becomes a reality.
A: Technically possible with specific hardware, but highly discouraged. Single-phase motors (especially those with centrifugal start switches or capacitors) do not respond well to VFDs. Upgrading to a 3-phase motor with a phase-converting VFD is the industry standard approach.
A: While a standard motor might run on a VFD for a short time, the voltage spikes from the drive will rapidly degrade standard insulation, and low-speed operation will cause overheating. For reliable, long-term operation, an inverter-duty motor is required.
A: This depends on the motor's turn-down ratio and cooling method. A standard TEFC inverter-duty motor may safely run at 10-25% of base speed, while a blower-cooled motor can provide full torque down to 0 RPM (closed-loop vector control).
